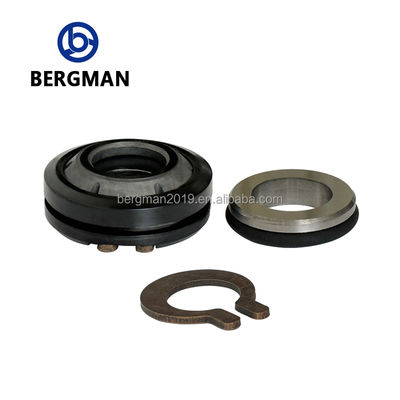

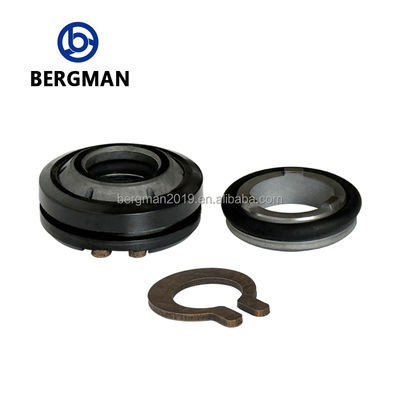

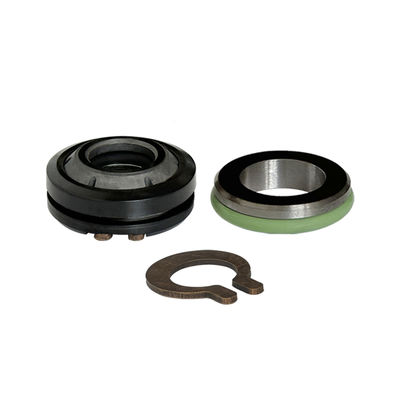

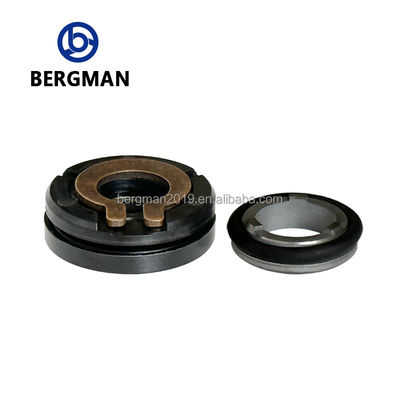

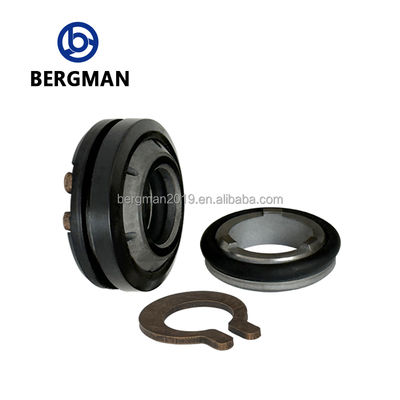

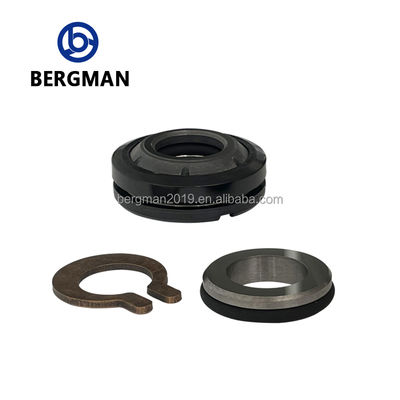

Replace Flygt FGU-20mm Upper Seal for Flygt Pump Models with 20mm TC Face and TC Seat
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 크기 | 20mm | 얼굴 재료 | 텅스텐 카바이드 TC |
|---|---|---|---|
| 시트 재료 | 텅스텐 카바이드 TC | 엘라스토머 소재 | 바이톤 FPM |
| 금속 부품 | SS316 하스텔로이 C AM350 | 최대 압력 | ≤ 1.5mpa |
| 최대 라인 속도 | ≤ 15m/s | 온도 범위 | -20 ° C-180 ° C |
| 모델 | FS-G-U20mm | HTS는 코드화됩니다 | 8484.20.00 |
| 보조 씰 | 바이톤 FPM | 호환 모델 | 플라이트 3045, 3050, 3060, 3085, 3069 |
| 재료 옵션 | 텅스텐 카바이드, 실리콘 카바이드, 탄소 흑연, 알루미나 | O- 링 재료 | 응용 프로그램에 따라 다릅니다 |
| 씰 유형 | 기계적 상부 씰 | ||
| 강조하다 | Replace Flygt FGU-20mm Upper Seal,20mm Flygt Pump Mechanical Seal,Flygt Pump Models Upper Seal |
||
제품 설명
Replace Flygt FGU-20mm 3045 3050 3060 3085 3069 Pump Mechanical Seal Upper Seal
Product Specifications
| Name | Mechanical Seal |
|---|---|
| Size | Standard size (20mm, 25mm, 35mm, 45mm, 60mm, 75mm, 80mm, 90mm) |
| Brand | BERGMAN |
| Model | FS-G-U20mm |
| Pressure | ≤ 1.5mpa |
| Temperature | -20°C-180°C (Depends on O-ring material) |
| Face Material | Tungsten carbide TC |
| Seat Material | Tungsten carbide TC |
| Secondary Seal | VITON FPM |
| Metal Parts | SS316 Hastelloy C AM350 |
| Certificate | ISO9001-2015 |
| Service | OEM customization service |
Compatible Flygt Pump Models
1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066, 2070, 2071, 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102, 2125, 2135, 2140, 2151, 2201, 2250, 2400, 2610, 2620, 2630, 2660, 2670, 2730, 2740, 3041, 3045, 3050, 3057, 3060, 3065, 3066, 3067, 3068, 3069, 3080, 3082, 3085, 3101, 3102, 3126, 3127, 3140, 3151, 3152, 3153, 3170, 3171, 3200, 3202, 3230, 3231, 3300, 3301, 3306, 3310, 3311, 3350, 3351, 3356, 3400, 3501, 3530
Product Features
- Complies with DIN24960, ISO3069, EN12576, API682 standards
- Can replace original seals with cost-effective alternatives
- 2,000+ square meters warehouse with large inventory for fast delivery
- Can replace Burgman, John Crane, AES and other world-renowned brands
- Supports OEM and customized services
- Factory-direct pricing with high quality and fast delivery
- Full range of mechanical seals for Flygt pumps
Material Advantages
Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, O-rings, etc.
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, the company has passed the quality management system GB/T19001-2016 idt ISO9001:2015 certification. We specialize in mechanical seals for various applications including pumps, axes, fluids, and more. Our materials include cemented carbide, silicon carbide, carbon graphite, and alumina.
Located in Guangzhou with convenient access to major ports, we maintain a 2,000+ square meter warehouse for efficient logistics and quick delivery.
Production Capabilities
- 2,000+ square meter exhibition hall with over 1,000 product varieties
- Modern advanced machine tool equipment
- Dust-free workshop with inspection equipment
- Assembly line operation
- Regular participation in Guangzhou Spring Import and Export Fair
Application Range
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation industries.
Packaging & Shipping
Various packaging options available with customized packaging for large orders. Small size and weight make air, sea, and express shipping ideal.
FAQ
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately. Custom items require 10-25 days depending on quantity.
Q: Do you provide free samples?
A: Samples are not free, but sample cost can be refunded after order placement.
Q: What is your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipping.
Q: Can you customize products not in your catalog?
A: Yes, we welcome OEM and custom product requests.
Contact Us
International Trade:
Li Wei: Mobile +86-15622176299
Yang Yingjie: WeChat/WhatsApp +86-15627223988
Yang Aijun: WeChat/WhatsApp +86-13602719849
Email: bergman168@outlook.com
